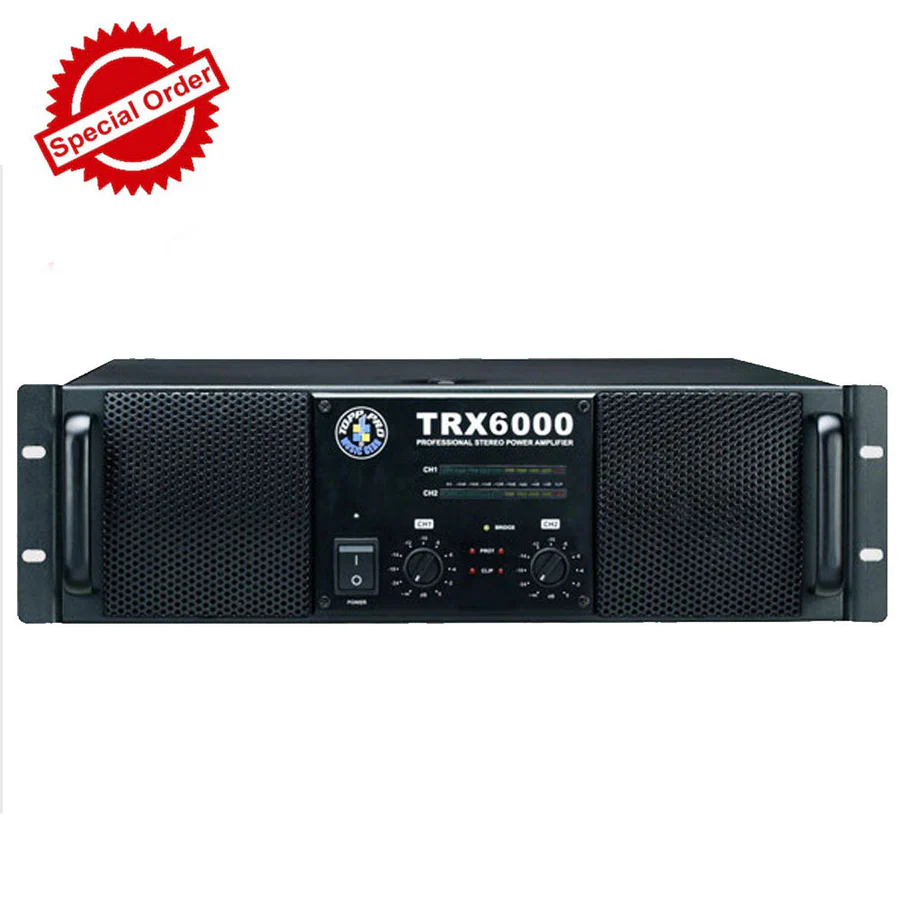

Topp Pro TRX6000 Power Amplifier

POWER Bridge Mode 8 Ohms
4140W
POWER Stereo Mode 4 Ohms
2150W x 2
POWER Stereo Mode 8 Ohms
1225W x 2
Model TRX 6000
Stereo Mode
8O/ 1KHz /1% THD Continuous 1225W*2
4O/ 1KHz /1% THD Continuous 2150W*2
2O/EIA 1KHz /1% THD Peaks 5200W*2
Bridge Mono Mode
8O/ 1KHz /1% THD Continuous 4140W
4O/ 1KHz /1% THD Peaks 9600W
Max. Continuous Voltage Swing THD=1%, 1KHz 113V
Voltage Gain,ref.1KHz 40dB
Max. Power Consumption output power @4 ohms 7000W
Dimension (cm) 59.1 x 56.6 x 21.9
Weight (kg) 39.6
Single to Noise Ratio A-weighted: > 105dB
Residual Noise, A-weighted: < -65dBu
Input Sensitivity: 1.1V
Total Harmonic Distortion: < 0.05%
Crosstalk ref.1KHz at rated output power: > 60dB
Frequency Response: 20Hz~20kHz ±1dB at 10dB below rated output power
Input Impedance: 10kohms unbalanced, 20kohms balance
Damping Factor, 1kHz: > 500 at 8ohms
Slew Rate: 40V/µS
Power Requirements: 100V, 120V, 220V, 230V, 240V, 50/60Hz (factory configured)
Protections: Turn-on delay, Over-heat, Short-circuit, DC, over-current, mismatched loads
