Audio-Technica 3000 Wireless Mic. System with Headworn Mic.

Description

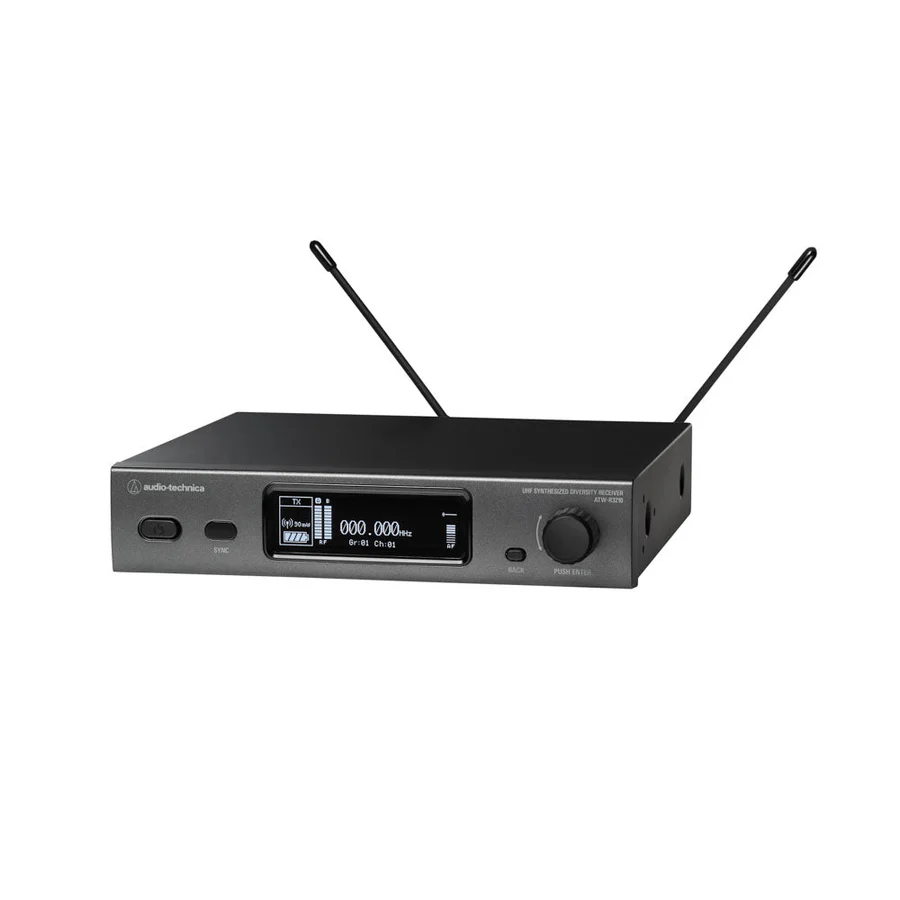

The Audio-Technica ATW-3211/892THDE2 3000 Series Fourth Generation is a frequency-agile, true diversity UHF wireless microphone system designed to give users the power and flexibility to operate within the congested UHF spectrum. The system includes an ATW-R3210 receiver, an ATW-T3201 bodypack transmitter, and a beige BP892cH-TH MicroSet omnidirectional condenser headworn microphone, and is designed to provide intelligible, natural audio while minimizing potential interference, for stage, television, lecture, event presentation, or house of worship applications and give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300′ (100 m) and are available in two frequency bands – DE2 (470–530 MHz) and EE1 (530–590 MHz) – that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference.

CHARACTERISTICS

OVERALL SYSTEM SPECIFICATIONS
Operating Frequencies	Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Band EF1: 590.000 to 649.975 MHz (2400 frequencies) Band FG1: 650.000 to 699.875 MHz (1996 frequencies) Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.
Minimum Frequency Step	25 kHz
Modulation Mode	FM
Maximum Deviation	ATW-T3201: ±38 kHz (THD:10%) ATW-T3202: ±36 kHz (THD:10%)
Dynamic Range	ATW-T3201 Mic input: > 115 dB (A-weighted), typical ATW-T3201 Inst input: > 112dB (A-weighted), typical ATW-T3202: > 115 dB (A-weighted), typical
Total Harmonic Distortion	<1.0% (at 1 kHz, ±17.5 kHz deviation)
Operating Range	100 m (328′) Open range environment with no interfering signals.
Operating Temperature Range	-5° C to +45° C (23° F to 113° F)
Frequency Response	ATW-T3201: 31 Hz to 15,500 Hz ATW-T3202: 25 Hz to 16,700 Hz Frequency response depends on attached microphone element
Maximum Simultaneous Use (Recommended)	40 Channels per band* For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. Region and band dependent*

RECEIVER SPECIFICATIONS
Receiving System	True Diversity
Image Rejection	60 dB nominal
RF Sensitivity	20 dBuV at 60 dBA S/N ratio (50 ohms termination)
Antenna Power	12 V DC, 160 mA (combined)
Maximum Output Level	XLR, balanced: +14 dBV 6.3 mm (1/4″), unbalanced: +8 dBV
Antenna Input	BNC-type, 50 ohms
Power Supply	100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions	210.0 mm x 191.0 mm x 43.4 mm (W x D x H) 8.27″ x 7.52″ x 1.71″ (W x D x H)
Net Weight	1100 g (38.8 oz), without accessories
Accessories Included	Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters; AT8631 joining plate (ATW-R3210N only)

BODY-PACK TRANSMITTER SPECIFICATIONS
RF Power Output	High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Spurious Emissions	Following Federal and National Regulations
Input Connections	cH-style screw-down 4-pin connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +5V
High-pass (low-freq. roll-off)	125Hz, 12dB/octave
Batteries	Two 1.5V AA, not included
Battery Life	High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions.
Dimensions	64 mm x 82 mm x 23 mm (W x D x H) 2.52″ x 3.22″ x 0.91″ (W x D x H)
Net Weight	102 g (3.6 oz), without batteries

Features

Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470–530 MHz) and EE1 (530–590 MHz)
Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
Network-enabled system, featuring the ATW-R3210N receiver, offers network monitoring and control via Wireless Manager software
True Diversity operation reduces dropouts
Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
Frequency scan and IR sync functionality for ease of setup
Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
Antenna power available for powered antennas and other in-line RF devices
Ground-lift switch helps eliminate audible hum caused by ground loops
Balanced and unbalanced audio output jacks
